Secure. Strategic. Compliant.
Zimcom’s Data Centers
Zimcom’s secure data centers are strategically located in multiple geographic locations across the United States. Our state-of-the-art data center facilities are secure and compliant by design, providing you with the infrastructure you need to run your mission-critical data and applications safely and reliably.
Data Center Specifications
Previous image
Next image
DETROIT
CINCINNATI
DALLAS
Compliance
Zimcom understands the importance of internal controls and process management. We design and review our processes and procedures to align with the policies set up by the American Institute of Certified Public Accountants (AICPA) for enterprise level data centers. Each Zimcom datacenter undergoes regular 3rd party audits in accordance with SSAE-16 SOC1 and SOC2 compliance standards, in addition to maintaining design and control practices that adhere to ISO, HIPAA and PCI compliance.
Overview
- Tier III Data Center facility
- SSAE 16 (SOC I type II) compliant, HIPAA, concurrently maintainable design
- Carrier-neutral
- Built to Fujita F2 wind rating
- U.S. Green Building Council LEED Certified
- PCI DSS Compliant (sec 9 & 12)
- ISO 27001 Certified
- FISMA Compliant
Security
- 7 Levels of security for facility access
- Video surveillance and recording of interior and exterior
- On-site security guards 24x7x365
- On-site Network Operations Center staff 24x7x365
- Man traps, revolving entrance doors, and key card security for rigid access controls
- Locking cabinets and cage security
- Reinforced physical structure, including concrete bollards

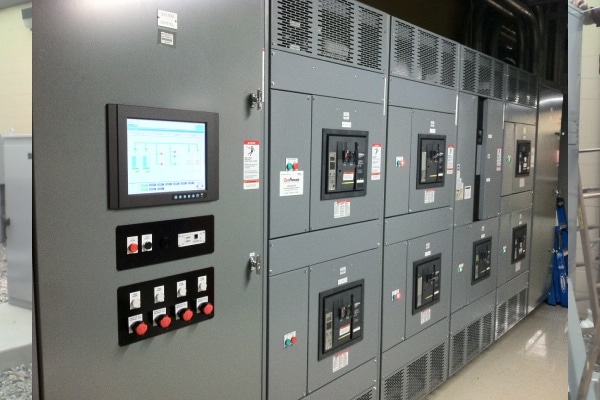

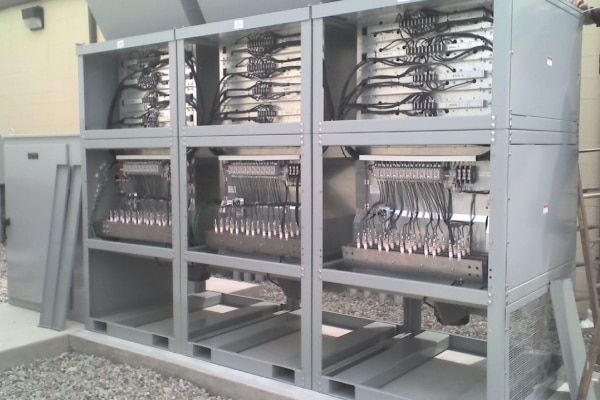

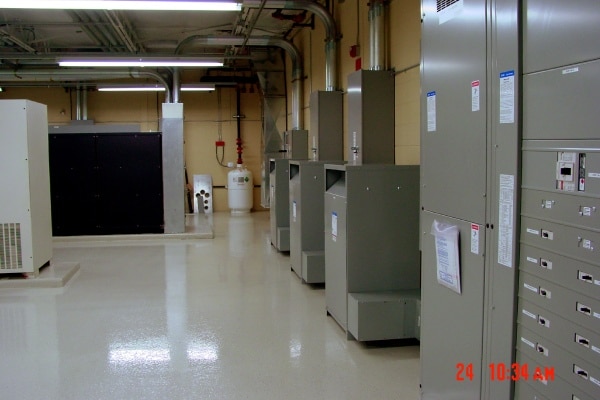

Power
- 100% power uptime service level agreement
- Multiple levels of redundancy availability within same footprint (N, N+1, 2N)
- 7 dedicated substations in the building
- Diverse power delivered by 6 independent circuits

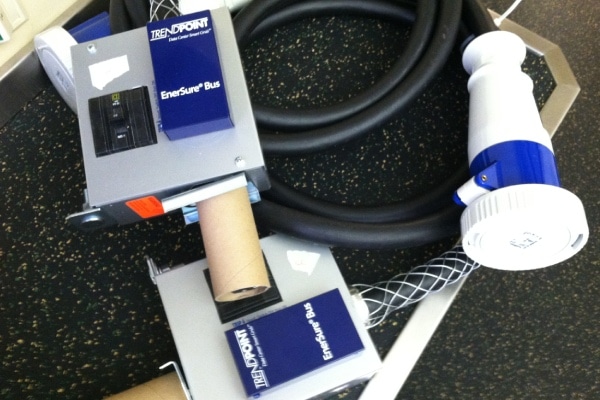

- 25 kVA single-input PDUs with automatic transfer switches
- Scalable 2 MW Cummins dedicated generators
- 40,000-gallon fuel capacity for site (2 – 20 K gallon tanks)
Cooling
- 36-inch raised floor design
- Highly efficient multiple 1,200-ton York Centrifugal chillers
- 115-ton Hunt Air ACU with electronically commutated (EC) variable-speed fans; other levels/halls utilize 30- and 40-ton CRAC units
- Closed-loop chilled water cooling design
- Redundant water supply and return
Fire Protection
- Very Early Smoke Detection Apparatus (VESDA) system; sampling air in parts per million
- FM200 or FE-25 clean gas suppression in a full flood deployment
